X1001 Top-Mounted PCIe to NVMe SSD Expansion Shield for Raspberry Pi 5
X1001 Top-Mounted PCIe to NVMe SSD Expansion Shield for Raspberry Pi 5
X1001 Top-Mounted PCIe to NVMe SSD Expansion Shield for Raspberry Pi 5
X1001 Top-Mounted PCIe to NVMe SSD Expansion Shield for Raspberry Pi 5
X1001 Top-Mounted PCIe to NVMe SSD Expansion Shield for Raspberry Pi 5
X1001 Top-Mounted PCIe to NVMe SSD Expansion Shield for Raspberry Pi 5

X1001 Top-Mounted PCIe to NVMe SSD Expansion Shield for Raspberry Pi 5
Easy-access NVMe storage
$15.00
$15.00
Free Shipping, Tax Included in Price
Quantity must be 1 or more

PRODUCT DETAILS

Extension Board


› HARDWARE OVERVIEW

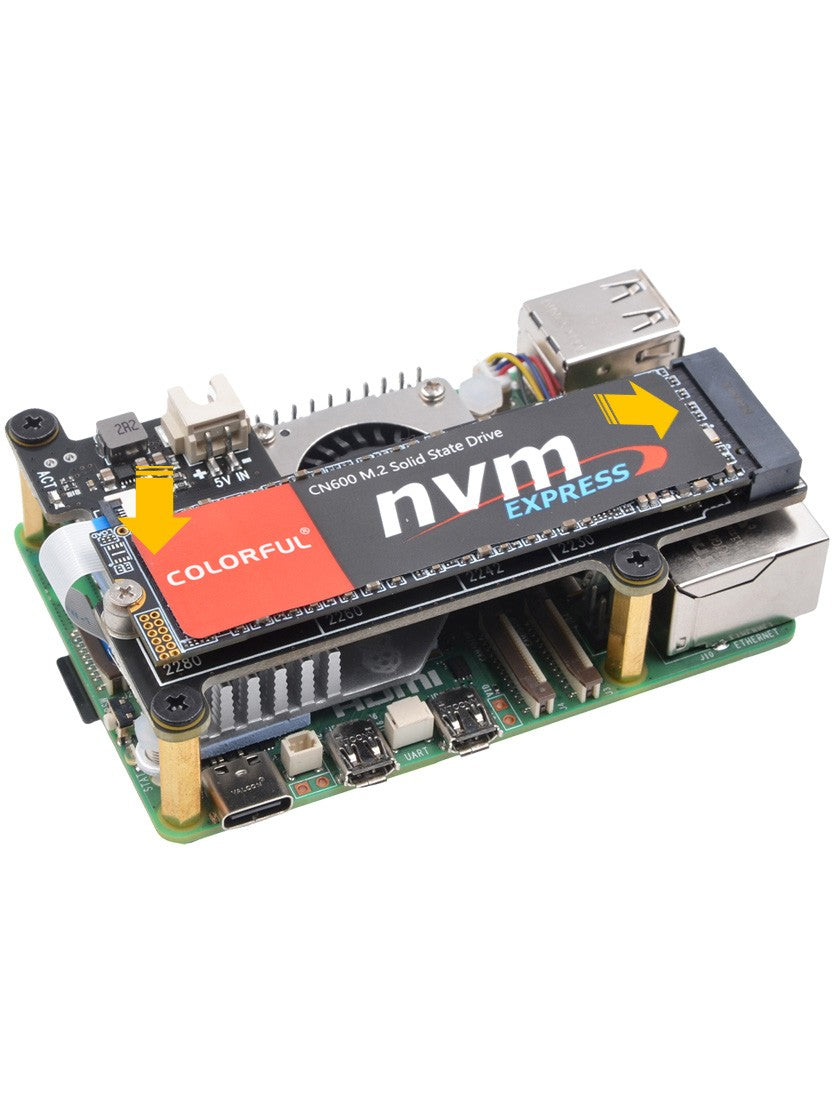

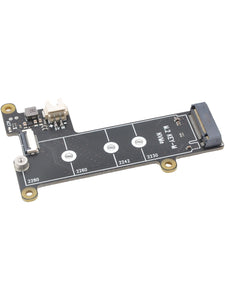

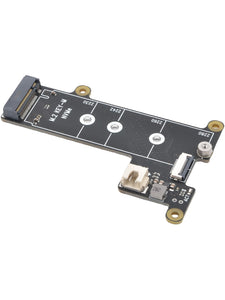

  • The X1001 connects an M.2 NVMe SSD (2230, 2242, 2260, or 2280 sizes) to the Pi 5’s PCIe 2.0 x1 interface, delivering speeds up to ~500 MB/s—far outpacing microSD cards (~50-100 MB/s) or USB 3.0 drives (~300-400 MB/s shared). This is ideal for “easy-access NVMe storage,” like booting the OS, running a quick NAS, or supporting rapid data tasks.

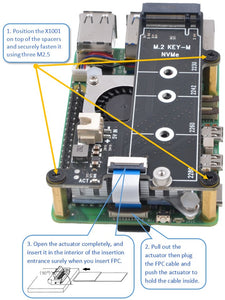

  • Unlike bottom-mounted boards, the X1001 sits atop the Pi 5, making SSD swaps or checks straightforward without disassembling your setup. It includes a 40-pin GPIO header for HAT stacking, perfect for projects needing both storage and extra functionality (e.g., sensors or POE)—a big plus for tinkerers who value convenience.
  • At $15, it’s one of the cheapest NVMe options for the Pi 5, powered via GPIO (5V, up to 3A for the SSD) without external cables. It’s a no-frills, plug-and-play solution for builders wanting fast storage without complexity or high cost.
  • It’s tailored for users who prioritize speed and simplicity—think a portable media hub, lightweight server, or AI project where you might swap SSDs often.



› APPLICATIONS
The X1001 PCIe to NVMe M.2 SSD Shield Board opens up new possibilities for cutting-edge robotics and AI projects with the Raspberry Pi 5. Its high-speed storage capabilities make it perfect for applications requiring rapid data access and storage, such as real-time image processing, machine learning model training, and large-scale data logging in robotics. Users can customize their setups by integrating multiple X1001 boards for expanded storage solutions or by pairing the board with additional Raspberry Pi HATs for enhanced functionality, such as wireless communication or additional sensor integration. This board is an excellent foundation for developing high-performance, portable AI systems or for implementing complex data processing tasks in robotics projects.



› DOCUMENTATION
Below are the relevant documentation resources for this product. Expand this section to view the links.

Back to All Products

PRODUCT DETAILS

Extension Board


› HARDWARE OVERVIEW
  • The X1001 connects an M.2 NVMe SSD (2230, 2242, 2260, or 2280 sizes) to the Pi 5’s PCIe 2.0 x1 interface, delivering speeds up to ~500 MB/s—far outpacing microSD cards (~50-100 MB/s) or USB 3.0 drives (~300-400 MB/s shared). This is ideal for “easy-access NVMe storage,” like booting the OS, running a quick NAS, or supporting rapid data tasks.
  • Unlike bottom-mounted boards, the X1001 sits atop the Pi 5, making SSD swaps or checks straightforward without disassembling your setup. It includes a 40-pin GPIO header for HAT stacking, perfect for projects needing both storage and extra functionality (e.g., sensors or POE)—a big plus for tinkerers who value convenience.
  • At $15, it’s one of the cheapest NVMe options for the Pi 5, powered via GPIO (5V, up to 3A for the SSD) without external cables. It’s a no-frills, plug-and-play solution for builders wanting fast storage without complexity or high cost.
  • It’s tailored for users who prioritize speed and simplicity—think a portable media hub, lightweight server, or AI project where you might swap SSDs often.



› APPLICATIONS
The X1001 PCIe to NVMe M.2 SSD Shield Board opens up new possibilities for cutting-edge robotics and AI projects with the Raspberry Pi 5. Its high-speed storage capabilities make it perfect for applications requiring rapid data access and storage, such as real-time image processing, machine learning model training, and large-scale data logging in robotics. Users can customize their setups by integrating multiple X1001 boards for expanded storage solutions or by pairing the board with additional Raspberry Pi HATs for enhanced functionality, such as wireless communication or additional sensor integration. This board is an excellent foundation for developing high-performance, portable AI systems or for implementing complex data processing tasks in robotics projects.



› DOCUMENTATION
Below are the relevant documentation resources for this product. Expand this section to view the links.
